Designed and built in the USA

Home Solutions Charging Stations and Smart Hubs PureCharge Pro Station™

PureCharge Pro Station™

PureCharge Pro Station™

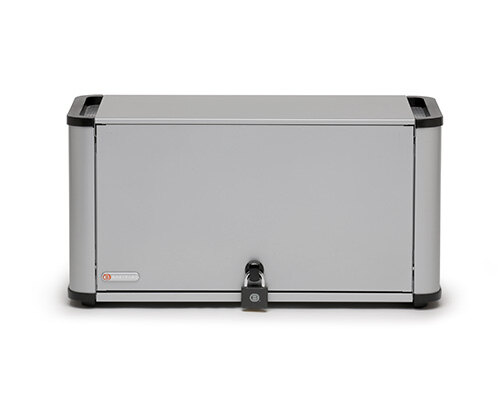

PC 20 SO CLSD 001

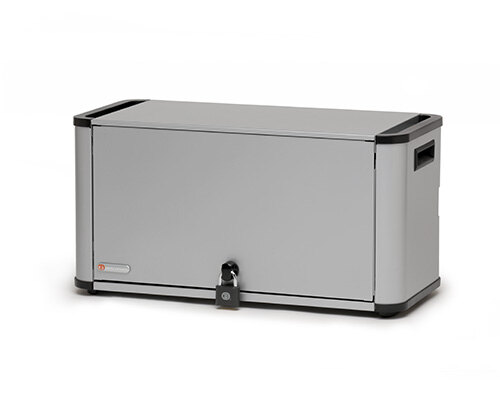

PC 20 3 4 Rt 029

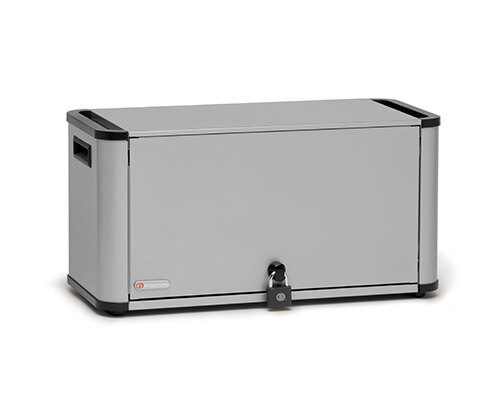

PC 20 3 4 Left 033

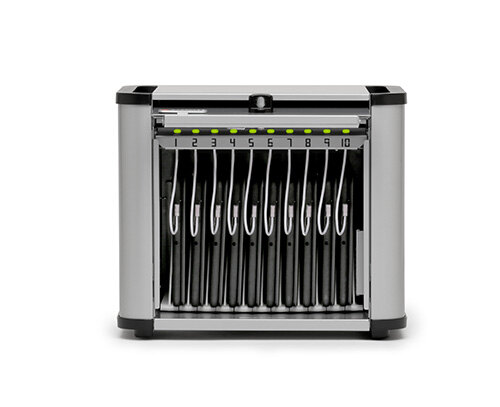

PC 10 SO ChromeBooksLightsGen2 044

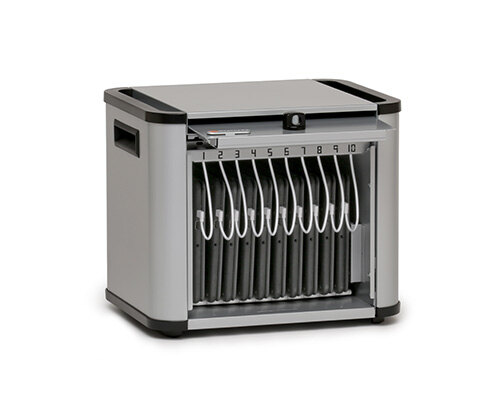

PC 10 SO Open 054

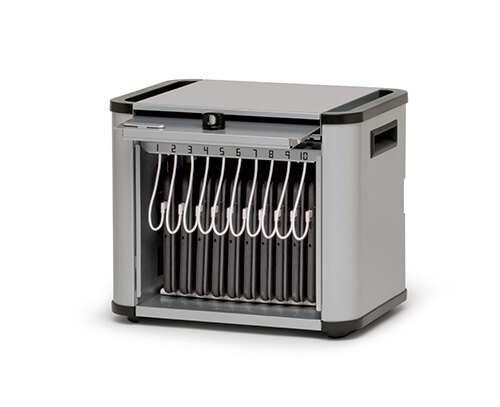

PC 10 ChrmBks 3 4 Rt 046

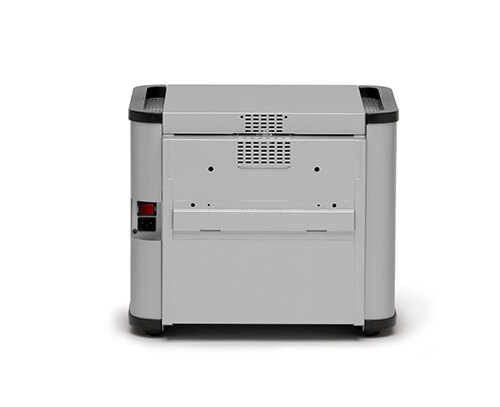

PC 10 SO Rear 035

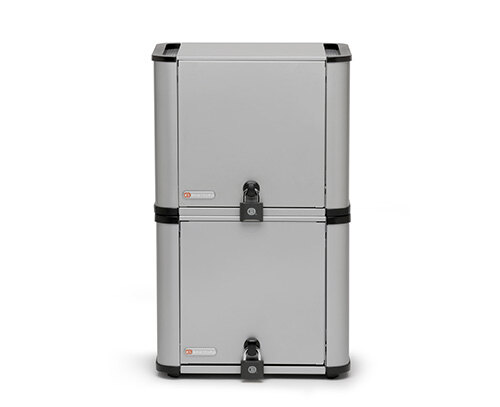

PC 10 SO FrontStackedGen2 037

Meet PureCharge ProTM, a universal solution for fast charging and secure storage of USB-C devices. With built-in 65W USB Power Delivery technology and pre-wired USB-C cables, this future-proof product is ready-to-go out of the box and supports up to 20 devices.

65W Fast Charging

USB Power Delivery intelligently adapts to provide optimal charging rates to each device.

Pint-Sized Powerhouse

Built-in USB Power Delivery provides 65W fast charging in a package 20% smaller than comparable AC solutions.

No Cable Management Needed

Pre-wired USB-C cables are customized to the perfect length, eliminating up to 100 feet of excess cord length with zero setup time.

LEARN MORE

Features & Benefits

icon size matters 1

PINT-SIZED POWERHOUSE

Built-in USB Power Delivery provides 65W fast charging in a package 20% smaller than comparable AC solutions.
icon thermometer

THERMAL MANAGEMENT

Thermal chimney design, coupled with two internal fans keep devices cool during charging.
icon usb c

NO CABLE MANAGEMENT NEEDED

Pre-wired USB-C cables are customized to the perfect length, eliminating up to 100 feet of excess cord length with zero setup time.
icon built to last 1

BUILT TO LAST

Each unit is fully welded. Designed and built in the USA.
FandB Charge Status

At-a-Glance Charge Status

LEDs above each slot indicate whether devices are charging (orange) or fully charged (green).

FandB Organized Cables

Organized Cables

Perfect length cables feature right-angle connectors to eliminate cord strain and retention bracket to prevent unauthorized removal.

FandB advanced charging

65W Fast Charging

USB Power Delivery intelligently adapts to provide optimal charging rates to each device.

FandB Pocket Door

Pocket Door

Neatly tucks out of the way when the station is open to unload devices.

FandB lock

Security

All-steel, fully welded construction with 3-point locking system provide enhanced security for protecting your devices.

FandB Stackable

Stackable

Space-saving design allows stacking of up to three stations to support up to 60 devices in a single footprint.

Product Specifications

SPECIFICATIONS

Construction USA-sourced steel

Manufactured in Franklin Park, IL
Device Compatibility Up to 13 in. USB-C Devices
Power AC: 100-240V / 5.8A / 50/60Hz

DC: Up to 20V ⎓ 3.25A
Shipment Includes
  • PureCharge Pro Station™
    (Ships fully assembled)
  • USB-C to USB-C cables
  • Combination lock
  • IEC Power cord
    •

    DIMENSIONS

    Part Number PCPDS10C PCPDS20C
    Device Capacity 10 20
    Station Dimensions 17.25 x 15.7 x 15 in. 43.8 x 39.9 x 38.1 cm. 28.7 x 15.7 x 15 in. 72.9 x 39.9 x 38.1 cm.
    Slot Dimensions 1 x 12.5 x 9.6 in.
    2.5 x 31.8 x 24.4 cm         		1 x 12.5 x 9.6 in.
    2.5 x 31.8 x 24.4 cm
    Weight 35 lbs. 52 lbs.

    Dimensions are expressed W x D x H

    Product Resources

    PureCharge Pro StationTM

    PDF

    Product Warranty

    PDF
